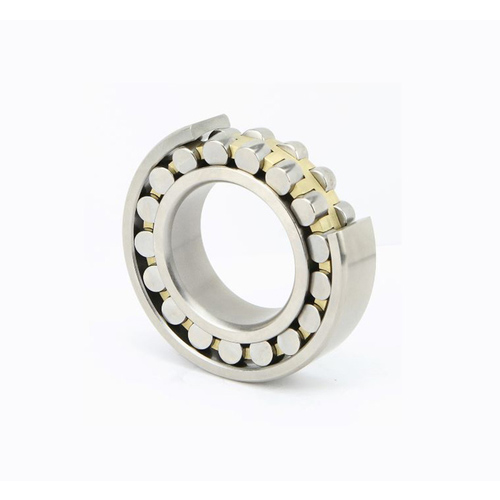

圆柱滚子轴承
在线咨询 NU系列
| Bearing No. | Boundary Dimensions(mm) | Basic Load Rating(KN) | Weight | |||||
| d | D | B | r min | r1 min | Cr | Cor | ||
| NU205 | 25 | 52 | 15 | 1 | 0.6 | 28.7 | 27 | 0.14 |
| NU206 | 30 | 62 | 16 | 1 | 0.6 | 37.7 | 36.5 | 0.23 |
| NU207 | 35 | 72 | 17 | 1.1 | 0.6 | 48.7 | 48.2 | 0.33 |
| NU208 | 40 | 80 | 18 | 1.1 | 1.1 | 53.9 | 53.2 | 0.42 |
| NU209 | 45 | 85 | 19 | 1.1 | 1.1 | 61.3 | 64.1 | 0.48 |
| NU210 | 50 | 90 | 20 | 1.1 | 1.1 | 64.1 | 69.3 | 0.49 |
| NU211 | 55 | 100 | 21 | 1.5 | 1.1 | 84.2 | 96.7 | 0.67 |
| NU212 | 60 | 110 | 22 | 1.5 | 1.5 | 93.9 | 102 | 0.81 |
| NU213 | 65 | 120 | 23 | 1.5 | 1.5 | 107 | 119 | 1.05 |
| NU214 | 70 | 125 | 24 | 1.5 | 1.5 | 119 | 137 | 1.15 |
| NU215 | 75 | 130 | 25 | 1.5 | 1.5 | 130 | 156 | 1.25 |
| NU216 | 80 | 140 | 26 | 2 | 2 | 139 | 167 |
1.5 |
NJ系列
| Bearing No. | Boundary Dimensions(mm) | Basic Load Rating(KN) | Weight | |||||
| d | D | B | r min | r1 min | Cr | Cor | ||
| NJ205 | 25 | 52 | 15 | 1 | 0.6 | 28.7 | 27 | 0.15 |
| NJ206 | 30 | 62 | 16 | 1 | 0.6 | 37.7 | 36.5 | 0.24 |
| NJ207 | 35 | 72 | 17 | 1.1 | 0.6 | 48.7 | 48.2 | 0.33 |
| NJ208 | 40 | 80 | 18 | 1.1 | 1.1 | 53.9 | 53.2 | 0.43 |
| NJ209 | 45 | 85 | 19 | 1.1 | 1.1 | 61.3 | 64.1 | 0.49 |
| NJ210 | 50 | 90 | 20 | 1.1 | 1.1 | 64.1 | 69.3 | 0.5 |
| NJ211 | 55 | 100 | 21 | 1.5 | 1.1 | 84.2 | 96.7 | 0.67 |
| NJ212 | 60 | 110 | 22 | 1.5 | 1.5 | 93.9 | 102 | 0.83 |
| NJ213 | 65 | 120 | 23 | 1.5 | 1.5 | 107 | 119 | 1.07 |
| NJ214 | 70 | 125 | 24 | 1.5 | 1.5 | 119 | 137 | 1.15 |
| NJ215 | 75 | 130 | 25 | 1.5 | 1.5 | 130 | 156 | 1.3 |
| NJ216 | 80 | 140 | 26 | 2 | 2 | 139 | 167 | 1.6 |
