哈尔滨轴承

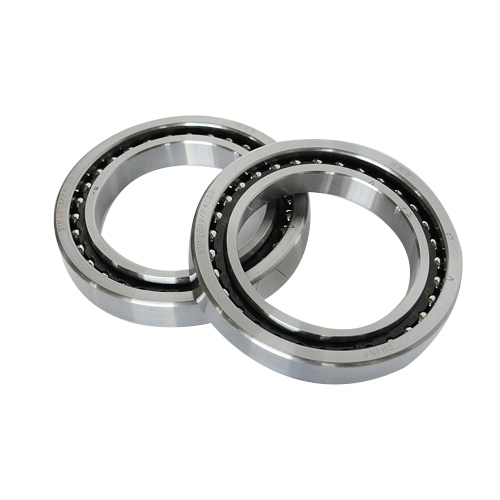

滚珠丝杠轴承

产品详情

外形尺寸	a=15°		a=25°		轴承代号 Bearing
Boundary	a=15°		a=25°		Desig-
dimensions	额定载荷	极限转速	额定载荷	极限转速	nations
	Load ratings	Limiting speeds	Load ratings	Limiting speeds
d D B rsmin r1smin	Cr Cor	脂油	Cr Cor	脂油
d D B rsmin r1smin	Cr Cor	Grease Cor	Cr Cor	Grease Cor
mm	kN	r/min	kN	r/min
10 19 5 0.30 0.10	1.8 1.1	75000 120000	1.7 1.1	70000 110000	71800
22 6 0.30 0.10	2.9 1.8	70000 110000	2.7 1.7	67000 100000	71900
26 8 0.30 0.15	4.0 2.4	67000 100000	3.8 2.3	60000 90000	7000
30 9 0.60 0.15	6.4 3.8	56000 85000	6.3 3.7	53000 80000	7200
12 21 5 0.30 0.10	2.0 1.4	70000 110000	1.9 1.3	63000 95000	71801
24 6 0.30 0.10	3.2 2.2	63000 95000	3.1 2.1	56000 85000	71901
28 8 0.30 0.15	5.0 3.0	60000 90000	4.8 2.8	56000 85000	7001
32 10 0.60 0.15	7.2 4.5	53000 80000	6.9 4.3	48000 70000	7201
15 24 5 0.30 0.10	2.2 1.8	60000 90000	2.1 1.7	53000 80000	71802
28 7 0.30 0.10	4.8 3.4	53000 80000	4.6 3.2	50000 75000	71902
32 9 0.30 0.15	5.3 3.3	50000 75000	5.1 3.1	45000 67000	7002
35 11 0.60 0.15	9.1 5.8	48000 70000	8.8 5.6	43000 63000	7202
17 26 5 0.30 0.10	2.3 1.9	60000 90000	2.1 1.7	53000 80000	71802
30 7 0.30 0.10	4.8 3.4	53000 80000	4.6 3.2	50000 75000	71902
35 10 0.30 0.15	6.7 4.9	45000 67000	6.4 4.7	40000 60000	7003
40 12 0.60 0.30	11.3 7.4	40000 60000	10.9 7.1	38000 56000	7203
20 32 7 0.30 0.10	3.9 3.4	45000 67000	3.7 3.2	40000 60000	71804
37 9 0.30 0.15	7.4 5.8	40000 60000	7.0 5.6	38000 56000	71904
42 12 0.60 0.15	9.6 6.3	38000 56000	9.2 6.0	34000 50000	7004
47 14 1.00 0.30	13.1 9.6	34000 50000	12.6 9.2	30000 45000	7204
25 37 7 0.30 0.15	4.2 4.1	38000 56000	3.9 3.9	34000 50000	71805
42 9 0.30 0.15	7.6 6.5	34000 50000	7.2 6.2	30000 45000	71905
47 12 0.60 0.15	12.9 8.7	34000 50000	12.3 8.3	30000 45000	7005
52 15 1.00 0.30	16.8 13.1	30000 45000	16.1 12.5	26000 40000	7205
30 42 7 0.30 0.15	4.4 4.8	32000 48000	4.1 4.5	28000 43000	71806
47 9 0.30 0.15	8.0 7.6	30000 45000	7.6 7.2	26000 40000	71906
55 13 1.00 0.30	15.7 11.6	28000 43000	14.9 10.9	24000 38000	7006
62 16 1.00 0.30	23.4 18.8	24000 38000	22.3 18.0	20000 34000	7206
35 47 7 0.30 0.15	4.6 5.5	26000 40000	4.3 5.2	24000 38000	71807
55 10 0.60 0.15	11 10.9	26000 40000	10.4 10.3	20000 34000	71907
62 14 1.00 0.30	19.3 17.5	20000 34000	18.3 16.6	19000 32000	7007
72 17 1.10 0.60	25.8 22.9	18000 30000	24.5 21.9	17000 28000	7207
40 52 7 0.30 0.15	4.8 6.2	24000 38000	4.5 5.8	20000 34000	71809
62 12 0.60 0.15	14 14.2	20000 34000	13.3 13.5	18000 30000	71908
68 15 1.00 0.30	19.9 19.1	19000 32000	18.9 18.2	17000 28000	7008
80 18 1.10 0.60	34.1 0.9	17000 28000	32.5 29.5	15000 24000	7208
45 58 7 0.30 0.15	4.9 6.7	20000 34000	4.6 6.3	18000 30000	71809
68 12 0.60 0.15	14.7 16.1	18000 30000	13.9 15.2	17000 28000	71909
75 16 1.00 0.30	26.7 25.3	17000 28000	25.4 24.1	16000 26000	7009
85 19 1.10 0.60	35.5 33.8	16000 26000	33.8 32.3	14000 22000	7209
50 65 7 0.30 0.15	7.4 10.0	18000 30000	4.6 9.5	16000 26000	71810
78 12 0.60 0.15	19 21.2	17000 28000	17.9 20.1	15000 24000	71910
80 16 1.00 0.30	27.6 27.5	16000 26000	26.2 26.2	15000 24000	7010
90 20 1.10 0.60	43.3 40.6	15000 24000	41.3 38.7	14000 22000	7210
55 72 9 0.30 0.15	10.2 13.8	16000 26000	9.6 13.1	15000 24000	71811
80 13 1.00 0.30	23.7 27.4	15000 24000	22.4 26	14000 22000	71911
90 18 1.10 0.60	36.7 37.1	14000 22000	34.8 35.3	13000 20000	7011
100 21 1.50 0.60	55.8 56.2	12000 19000	53.0 53.5	11000 18000	7212
60 78 10 0.30 0.15	13.4 18.0	15000 24000	12.6 17.0	14000 22000	71812
85 12 1.00 0.30	24.8 30.3	14000 22000	23.3 28.7	13000 20000	71912
95 18 1.10 0.60	37.8 40	14000 22000	35.8 38	12000 19000	7012
110 22 1.50 0.60	55.8 56.2	12000 19000	53.0 53.5	11000 18000	7212
65 85 10 0.60 0.15	13.4 18.0	14000 22000	12.6 17.8	13000 20000	71812
90 13 1.00 0.30	25.1 31.9	13000 20000	23.6 30.2	12000 19000	71913
110 22 1.50 0.60	38.9 42.9	13000 20000	36.8 40.7	11000 18000	7013
125 24 1.50 0.60	70.2 74.6	10000 17000	66.6 71.1	9000 15000	7214
70 95 10 0.60 0.15	14.2 21.7	12000 19000	13.3 20.5	11000 18000	71815
105 16 1.00 0.30	25 45.6	11000 18000	48.5 56.2	9500 16000	71915
115 20 1.10 0.60	51.3 59.2	11000 18000	48.5 56.2	9500 16000	7015
130 25 1.50 0.60	72.7 80.2	9500 16000	68.9 76.3	8500 14000	7215
75 95 10 0.60 0.15	14.2 21.7	12000 19000	13.3 20.5	11000 18000	71815
105 16 1.00 0.30	25 45.6	11000 18000	33 43.2	9500 16000	71915
115 20 1.10 0.60	51.3 59.2	11000 18000	48.5 56.2	9500 16000	7015
130 25 1.50 0.60	72.7 80.2	9500 16000	68.9 76.3	8500 14000	7215
80 100 10 0.60 0.15	14.5 23.1	11000 18000	13.6 21.8	9500 16000	71816
110 16 1.00 0.30	35.5 47.8	10000 17000	33.5 45.3	9000 15000	71916
125 22 1.10 0.60	61.6 70.4	10000 17000	58.3 66.9	9000 15000	7016
140 26 2.00 1.00	86.5 96.5	9000 15000	82.1 91.9	8000 13000	7216
85 110 13 1.00 0.30	21.5 32.2	10000 17000	20.2 30.5	9000 15000	71817
120 18 1.10 0.60	46.5 61.9	9500 16000	43.8 58.6	8500 14000	71917
130 22 1.10 0.60	63.3 75	9500 16000	59.9 71.3	8500 14000	7017
150 28 2.00 1.00	97.4 107.5	8500 14000	92.5 102.4	7500 12000	7217
90 115 13 1.00 0.30	21.7 33.5	9500 16000	20.4 31.6	8500 14000	71818
125 18 1.10 0.60	47.2 64.8	9000 15000	44.5 61.4	8000 13000	71918
140 24 1.50 0.60	66.9 84	9000 15000	63.2 79.7	8000 13000	7018
160 30 2.00 1.00	121.9 131.3	8000 13000	115.8 124.6	7000 11000	7218
95 120 13 1.00 0.30	21.9 34.7	9000 15000	20.6 32.8	8500 14000	71819
130 18 1.10 0.60	47.9 67.8	9000 15000	45.2 64.1	8000 13000	71919
145 24 1.50 0.60	79.1 97.6	8500 14000	74.8 92.7	7500 12000	7019
170 32 2.10 1.10	128.9 145.1	7500 12000	122.5 138.3	6700 10000	7219
100 125 13 1.00 0.30	22.5 37.0	8500 14000	21.2 34.9	8000 13000	71820
140 20 1.10 0.60	60.4 84.4	8500 14000	56.9 79.9	8000 13000	71920
150 24 1.50 0.60	81.2 103.3	8000 13000	76.7 98	7000 11000	7020
180 34 2.10 1.10	146.2 165.9	7000 11000	138.9 158.2	6700 10000	7220
105 130 13 1.00 0.30	22.7 38.3	8500 14000	21.3 36.1	8000 13000	71821
145 20 1.10 0.60	61.4 88.2	8000 13000	57.8 83.5	7500 12000	71921
160 26 2.00 1.00	93.9 118.2	7500 12000	88.8 112.2	7000 11000	7021
190 36 2.10 1.10	164.3 188.2	7000 11000	156.3 179.5	6300 9500	7221
110 140 16 1.00 0.30	31.8 51.6	8000 14000	21.3 36.1	8000 13000	71822
150 20 1.10 0.60	62.3 91.9	7500 12000	58.7 87	7000 11000	71922
170 28 2.00 1.00	110.4 139.8	7000 11000	104.4 132.8	6700 10000	7022
200 38 2.10 1.10	170.4 202.5	6700 10000	161.8 193.0	6000 9000	7222
120 150 16 1.00 0.30	33.1 56.9	7000 11000	31.1 53.7	6700 10000	71824
165 22 1.10 0.60	73.7 107.6	7000 11000	69.5 101.9	6700 10000	71924
180 28 2.00 1.00	112.7 148.7	7000 11000	106.5 141.1	6700 10000	7024
215 40 2.10 1.10	175.4 218.4	6000 9000	166.3 207.9	5300 8000	7224
130 165 18 1.10 0.60	38.7 67.6	6700 10000	36.6 63.8	6000 9000	71826
180 24 1.50 0.60	76.3 117.1	6700 10000	71.9 110.9	6000 9000	71926
200 33 2.00 1.00	144.8 190.8	6700 10000	136.8 181.0	6000 9000	7026
230 40 3.00 1.10	200.6 258.3	5600 8500	190.4 246.2	5000 7500	7226
140 175 18 1.10 0.60	44.8 79.2	6000 9000	42.0 74.7	5600 8500	71828
190 24 1.50 0.60	78.9 126.4	6000 9000	74.4 119.7	5600 8500	71928
210 33 2.00 1.00	148.7 202.6	6000 9000	140.4 192.2	5600 8500	7028
250 42 3.00 1.10	223.6 306.6	5000 7500	212.3 292.2	4500 6700	7228
150 175 18 1.10 0.60	44.8 79.2	6000 9000	42.0 74.7	5600 8500	71828
210 28 2.00 1.00	118.2 175.1	5600 8500	111.4 165.8	5000 7500	71930
225 35 2.10 1.10	168.4 323.5	5600 8500	159.1 220.6	5000 7500	7030
270 45 3.00 1.10	240.9 341.5	4500 6700	228.7 325.5	4000 6000	7230
160 200 20 1.10 0.60	52.4 97.7	5000 7500	49.2 92.2	4800 7000	71832
220 28 2.00 1.00	123.6 191.2	5000 7500	116.5 181.1	4800 7000	71932
240 38 2.10 1.10	189.1 264.5	5000 7500	178.6 251.0	4800 7000	7032
290 48 3.00 1.10	248.6 365.8	4300 6300	236.1 348.6	3800 5600	7232
170 215 22 1.10 0.60	66.5 123.4	4800 7000	62.4 116.5	4300 6300	71834
230 28 2.00 1.00	125.7 200.0	4800 7000	118.5 189.4	4300 6300	71934
260 42 2.10 1.10	205.6 299.3	4800 7000	194.2 284.0	4300 6300	7043
310 53 4.00 1.50	300.2 459.2	3800 5600	285.0 437.6	3600 5300	7234
180 250 33 2.00 1.00	159.7 249.1	4500 6700	150.6 235.9	4000 6000	71936
280 46 2.10 1.10	229.5 352.1	4500 6700	216.8 334.1	4000 6000	7036
320 52 4.00 1.50	311.2 490.8	3800 5600	295.5 467.7	3400 5000	7236
190 260 33 2.00 1.00	159.7 249.1	4500 6700	150.6 235.9	4000 6000	71936
290 46 2.10 1.10	235.1 370.8	4300 6300	222.1 351.8	3800 5600	7038
340 55 4.00 1.50	321.3 524.8	3400 5000	305.1 500.1	3200 4800	7238
200 280 38 2.00 1.00	206.6 341.1	3800 5600	187.1 294.9	3600 5300	71940
310 51 2.10 1.10	289.1 471.4	3800 5600	273.1 447.3	3600 5300	7040
360 58 4.00 1.50	330.9 558.6	3200 4800	314.2 532.3	3000 4500	7240
220 300 38 2.00 1.00	206.6 341.1	3600 5300	194.8 323.0	3200 4800	71944
340 56 3.00 1.10	325.3 559.4	3600 5300	307.3 530.8	3200 4800	7044
400 65 4.00 1.50	405.9 730.5	2800 4300	385.4 696.2	2600 4000	7244
240 320 38 2.10 1.00	219.2 384.2	3200 4800	206.7 363.8	3000 4500	71948
360 56 3.00 1.10	344.2 623.6	3200 4800	325.1 591.7	3000 4500	7048
260 360 46 2.10 1.00	284.6 528.8	3000 4500	268.3 500.8	2600 4000	71952
280 380 46 2.10 1.00	288.7 554.6	2600 4000	272.2 525.5	2200 3600	71956
