无锡市滚动轴承有限公司

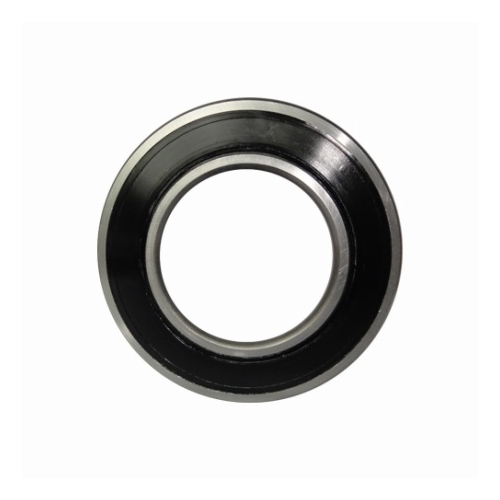

密封轴承

产品详情

密封轴承

Bearing No.	Boundary dimensions (mm)				Limiting speeds(r/min)	load ratings(KN)		Mass(kg)
Bearing No.	ｄ	D	B	rsmin	脂	Cr	Cor
BS2-2205-2CS	25	52	23	1	3600	49	44	0.26
BS2-2206-2CS	30	62	25	1	2800	64	60	0.34
BS2-2207-2CS	35	72	28	1.1	2400	86.5	85	0.52
BS2-2208-2CS	40	80	28	1.1	2200	96.5	90	0.57
BS2-2209-2CS	45	85	28	1.1	2000	102	98	0.66
BS2-2210-2CS	50	90	28	1.1	1900	104	108	0.70
BS2-2211-2CS	55	100	31	1.5	1700	125	127	1.00
BS2-2212-2CS	60	110	34	1.5	1600	156	166	1.31
BS2-2213-2CS	65	120	38	1.5	1500	193	216	1.60
BS2-2214-2CS	70	125	38	1.5	1400	208	228	1.80
BS2-2215-2CS	75	130	38	1.5	1300	212	240	2.10
BS2-2216-2CS	80	140	40	2	1200	236	270	2.40
BS2-2217-2CS	85	150	44	2	1100	285	325	3.00
BS2-2218-2CS	90	160	48	2	1000	325	375	3.70
BS2-2220-2CS	100	180	55	2.1	900	425	490	5.50
BS2-2222-2CS	110	200	63	2.1	800	560	640	7.60
BS2-2224-2CS	120	215	69	2.1	750	630	765	9.75
BS2-2308-2CS	40	90	38	1.5	1900	150	150	1.20
BS2-2309-2CS	45	100	42	1.5	1500	183	183	1.60
BS2-2310-2CS	50	110	45	2	1400	220	224	2.10
BS2-2311-2CS	55	120	49	2	1400	270	280	2.80
BS2-2312-2CS	60	130	53	2.1	1100	310	335	3.40
BS2-2313-2CS	65	140	53	2.1	1000	340	360	4.15
BS2-2314-2CS	70	150	60	2.1	900	400	430	5.10
BS2-2315-2CS	75	160	64	2.1	950	440	475	6.50
BS2-2316-2CS	80	170	67	2.1	800	490	540	7.20
22324-2CS	120	260	86	3	600	980	1120	23.00
23022-2CS	110	170	45	2	900	310	440	3.80
23024-2CS	120	180	46	2	850	355	510	4.20
23120-2CS	100	165	52	2	850	365	490	4.40
23122-2CS	110	180	56	2	800	430	585	5.75
23218-2CS	90	160	52.4	2	750	355	440	4.65
23220-2CS	100	180	60.3	2.1	700	475	600	6.85
23222-2CS	110	200	69.8	2.1	640	600	765	9.85
23224-2CS	120	215	76	2.1	600	695	930	12.00
24015-2CS	75	115	40	1.1	950	173	232	1.55
24020-2CS	100	150	50	1.5	800	285	415	3.20
24022-2CS	110	170	45	2	670	415	620	5.00
24024-2CS	120	180	60	2	670	430	670	5.45
24120-2CS	100	165	65	2	670	455	640	5.65
24122-2CS	110	180	69	2	630	520	750	7.10
24122-2CS	120	200	80	2	560	655	950	10.50
