无锡市滚动轴承有限公司

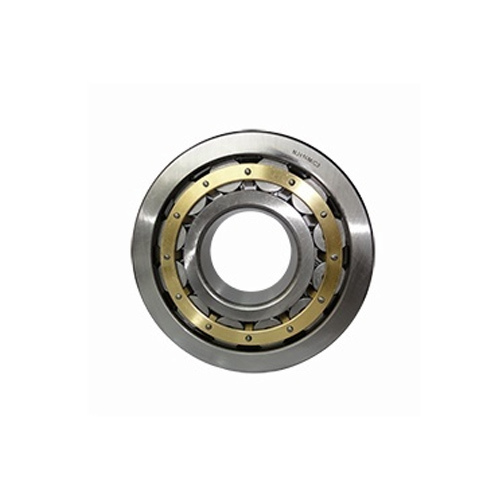

圆柱滚子轴承

产品详情

圆柱滚子轴承

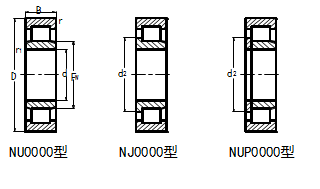

Boundary dimensions (mm)					load ratings(KN)		Bearing No.			Limiting speeds(r/min)		Other dimensions(mm)		Mass(kg)
ｄ	D	B	rsmin	r1smin	Cr	Cor	NU0000型	NJ0000型	NUP0000型	脂润滑	油润滑	Fw	d2
20	42	12	0.6	0.3	10.5	9.5	NU1004	—	—	13000	17000	25.5	—	0.09
	47	14	1	0.6	25.8	24.0	NU204E	NJ204E	NUP204E	12000	16000	26.5	29.7	0.117
	47	18	1	0.6	30.8	30.0	NU2204E	NJ2204E	NUP2204E	12000	16000	26.5	29.7	0.149
	52	15	1.1	0.6	29.0	25.5	NU304E	NJ304E	NUP304E	11000	15000	27.5	31.2	0.155
	52	21	1.1	0.6	39.2	37.5	NU2304E	NJ2304E	NUP2304E	10000	14000	27.5	29.7	0.216
25	47	12	0.6	0.3	11	10.2	NU1005	—	—	11000	15000	30.5	—	0.1
	52	15	1	0.6	27.5	26.8	NU205E	NJ205E	NUP205E	11000	14000	31.5	34.7	0.14
	52	18	1	0.6	32.8	33.8	NU2205E	NJ2205E	NUP2205E	11000	14000	31.5	34.7	0.168
	62	17	1.1	1.1	38.5	35.8	NU305E	NJ305E	NUP305E	9000	12000	34	38.1	0.251
	62	24	1.1	1.1	53.2	54.5	NU2305E	NJ2305E	NUP2305E	9000	12000	34	38.1	0.355
30	55	13	1	0.6	13.0	12.8	NU1006	—	—	9500	12000	36.5	—	0.12
	62	16	1	0.6	36.0	35.5	NU206E	NJ206E	NUP206E	8500	11000	37.5	41.3	0.214
	62	20	1	0.6	45.5	48.0	NU2206E	NJ2206E	NUP2206E	8500	11000	37.5	41.3	0.268
	72	19	1.1	1.1	49.2	48.2	NU306E	NJ306E	NUP306E	8000	10000	40.5	45	0.377
	72	27	1.1	1.1	70.0	75.5	NU2306E	NJ2306E	NUP2306E	8000	10000	40.5	45	0.538
	90	23	1.5	1.5	57.2	53.0	NU406	NJ406	NUP406	7000	9000	45	50.5	0.73
35	62	14	1	0.6	19.5	18.8	NU1007	—	—	8500	11000	42	—	0.16
	72	17	1.1	0.6	46.5	48	NU207E	NJ207E	NUP207E	7500	9500	44	48.3	0.311
	72	23	1.1	0.6	57.5	63	NU2207E	NJ2207E	NUP2207E	7500	9500	44	48.3	0.414
	80	21	1.5	1.1	62	63.2	NU307E	NJ307E	NUP307E	7000	9000	46.2	51.1	0.501
	80	31	1.5	1.1	87.5	98.2	NU2307E	NJ2307E	NUP2307E	7000	9000	46.2	51.1	0.738
	100	25	1.5	1.5	70.8	68.2	NU407	NJ407	NUP407	6000	7500	53	59	0.94
40	68	15	1	0.6	21.2	22	NU1008	NJ1008	—	7500	9500	47	—	0.22
	80	18	1.1	1.1	51.5	53	NU208E	NJ208E	NUP208E	7000	9000	49.5	54.2	0.394
	80	23	1.1	1.1	67.5	75.2	NU2208E	NJ2208E	NUP2208E	7000	9000	49.5	54.2	0.507
	90	23	1.5	1.5	76.8	77.8	NU308E	NJ308	NUP308E	6300	8000	52	57.7	0.68
	90	23	1.5	1.5	105	118	NU2308E	NJ2308E	NUP2308E	6300	8000	52	57.7	0.974
	110	27	2	2	90.5	89.8	NU408	NJ408	NUP408	5600	7000	58	64.8	1.25
45	75	16	1	0.6	23.2	23.8	NU1009	NJ1009	—	6500	8500	52.5	—	0.26
	85	19	1.1	1.1	58.5	63.8	NU209E	NJ209E	NUP209E	6300	8000	54.5	59.2	0.45
	85	23	1.1	1.1	71	82	NU2209E	NJ2209E	NUP2209E	6300	8000	54.5	59.2	0.55
